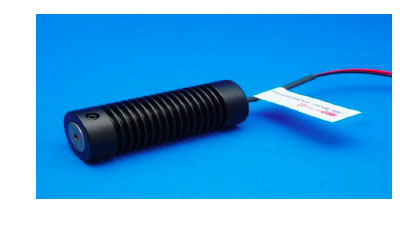

742 Series



• 532nm (green)

• <1mW, <3mW, or <5mW output

• Fixed focus

• Glass lens

• 3.3VDC operating voltage

• Aluminum heat sink housing

• 20mm diameter x 37mm length

• Dot, Line, or Cross Hair optic

Download 742 Series PDF Format

742-1-532: 532nm (green), Class II laser, <1mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Dot optic.

742-1-532L: 532nm (green), Class II laser, <1mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Line optic.

<1mW

<1mW

$150.00

$150.00

742-1-532C: 532nm (green), Class II laser, <1mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Cross Hair optic.

742-3-532: 532nm (green), Class IIIa laser, <3mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Dot optic.

<1mW

<3mW

$150.00

$200.00

742-3-532L: 532nm (green), Class IIIa laser, <3mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Line optic.

742-3-532C: 532nm (green), Class IIIa laser, <3mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Cross Hair optic.

<3mW

<3mW

$200.00

$200.00

742-5-532: 532nm (green), Class IIIa laser, <5mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Dot optic.

742-5-532L: 532nm (green), Class IIIa laser, <5mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Line optic.

<5mW

<5mW

$200.00

$200.00

742-5-532C: 532nm (green), Class IIIa laser, <5mW output laser diode module, Fixed focus, Glass lens, 3.3VDC operating voltage, aluminum heat sink housing, 20mm diameter x 60mm length, Cross Hair optic.

<5mW

$200.00
